The DS-940DW is engineered to be truly flexible. Featuring a built-in Li-ion battery, Wi-Fi and an intuitive LCD panel, use and setup is effortless!

Enjoy Scanning Anywhere

Truly portable, it has a built-in Li-ion battery, so you can enjoy scanning your documents without the need to plug into a power supply

Stay Effortlessly Organised

Turning paper documents into digital files ensures your information is easier to find, safer and more convenient to edit and share

Fast, double-sided (duplex) scanning

Easily scan 2-side (duplex) documents up to 15 pages per minute

Convenient and Space Saving

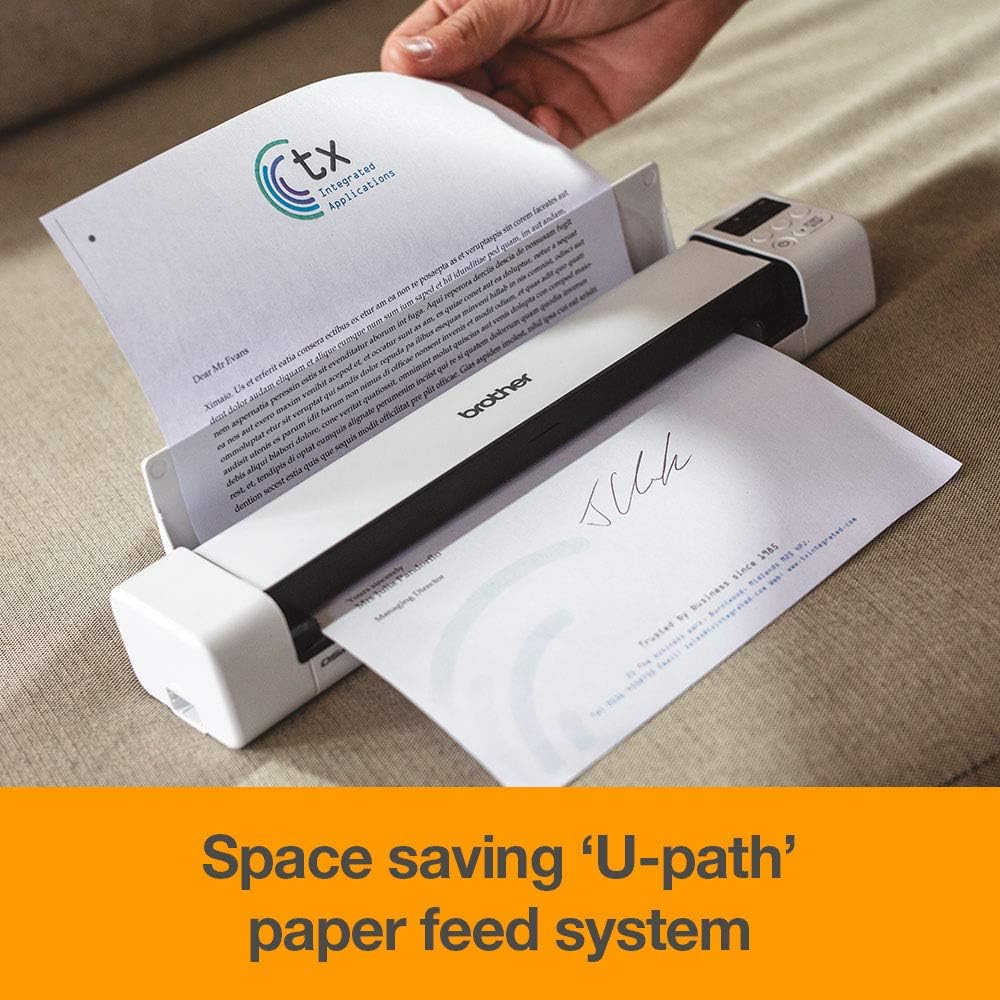

The unique “U-path” paper feed means you don’t need to have extra space behind the scanner for the document to feed through

Mixed Media, Consistent Results

Designed to scan a wide range of documents and with a built-in, dedicated roller system, your documents are smoothly fed through, guaranteeing high-quality, digital files every time

Bundled with industry leading software

Improve your workflow management with with industry leading PDF and document management software



Optional expandable storage

Using a micro SD card, you can increase your storage capabilities with ease

Compatible with Brother iPrint&Scan

Connect wirelessly via WiFi to your Apple, Android or Windows devices using the free iPrint&Scan to view and share documents

Tech Specs:

Basic Specs

DOCUMENT SIZE - SINGLE PAPER - WIDTH

50.8 mm to 215.9 mm

DOCUMENT SIZE - SINGLE PAPER - LENGTH

86.4 mm to 1,828 mm

COLOUR / BLACK

Yes / Yes

DUPLEX SCAN

Yes

COLOR DEPTH - INPUT

48-bit colour processing

COLOR DEPTH - OUTPUT

24-bit colour processing

RESOLUTION - OPTICAL

Max. 600 dpi × 600 dpi

RESOLUTION - INTERPOLATED

Max. 1,200 dpi × 1,200 dpi

GRAYSCALE

256 levels

PRODUCT DIMENSIONS (WIDTH X DEPTH X HEIGHT)

319 mm x 63.1 mm x 45.4 mm

General

MEMORY CAPACITY

512 MB

WEIGHT

0.7 kg

Operation

POWER SOURCE

Lithium battery
USB bus-power

POWER CONSUMPTION - SCANNING

USB3.0 mode 3.6W
Wi-Fi mode 4.4W

POWER CONSUMPTION - READY

2.2W @Wi-Fi mode
1.5W @PC mode

POWER CONSUMPTION - POWER OFF

0.11W

TEMPERATURE - OPERATING

5 to 35℃

HUMIDITY - OPERATING

20 to 80%

HUMIDITY - STORAGE

10 to 90%

Compliance

TWAIN COMPLIANT - WINDOWS®

Windows® 7 SP1 / Windows® 8.1 / Windows® 10/ Windows Server® 2012 / Windows Server® 2012 R2 / Windows Server® 2016 / Windows Server®2019

TWAIN COMPLIANT - MAC OS

macOS v10.12.x/10.13.x/10.14.x

Interface

USB

Micro USB3.0

WIRELESS LAN

IEEE802.11 b/g/n

Network

WIRELESS NETWORK SECURITY

WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)

SETUP SUPPORT UTILITY

WPS
