NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
HARDENING EVERY DETAIL
All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
- Extreme Performance: 2535 MHz (MSI Center)
- Boost: 2527 MHz
- TORX Fan 5.0:
- Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Heat Pipes
- designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

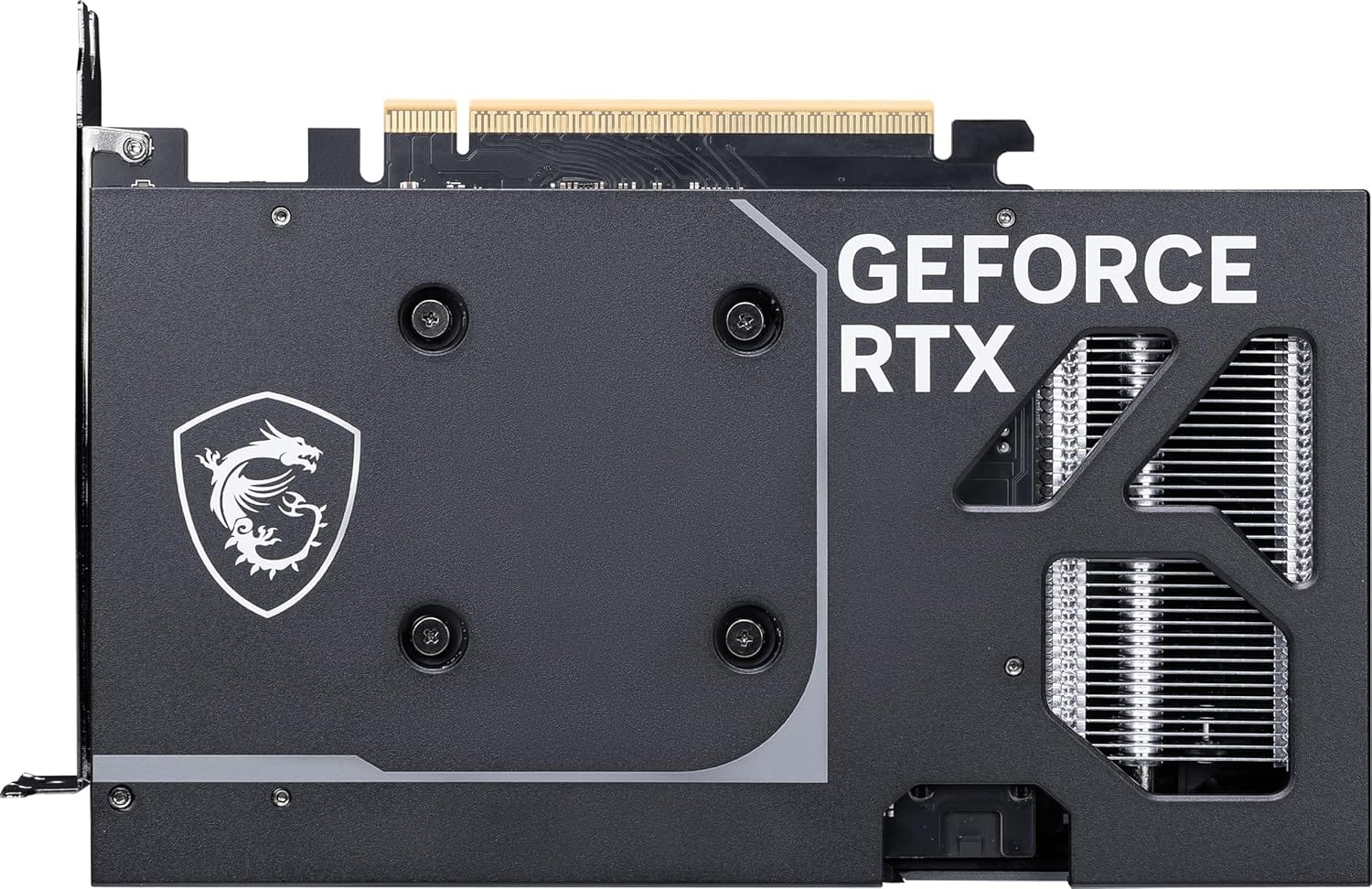

- Reinforcing Backplate:
- The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center:
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner
- software takes full control with the most recognized and widely used graphics card overclocking software in the world.
| Miscellaneous |
| Platform Supported |
PC |
| Power Description |
| Power Supply Wattage |
550 W |

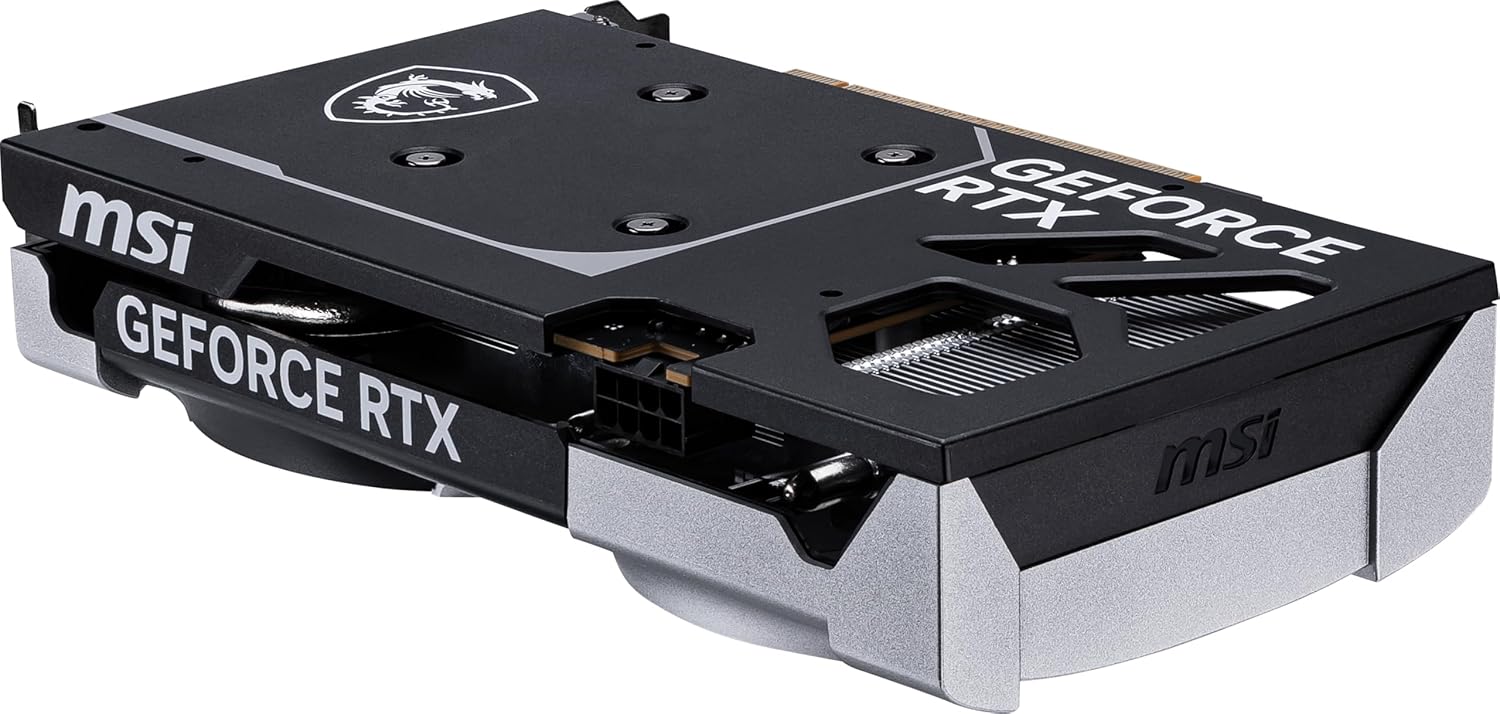

| Power Connector |
1x 8-pin |
| Memory |
| Standard Memory |
8 GB |
| Memory Technology |
GDDR7 |
| Bus Width |
128 bit |
| Interfaces/Ports |
| Host Interface |
PCI Express 5.0 x16 |

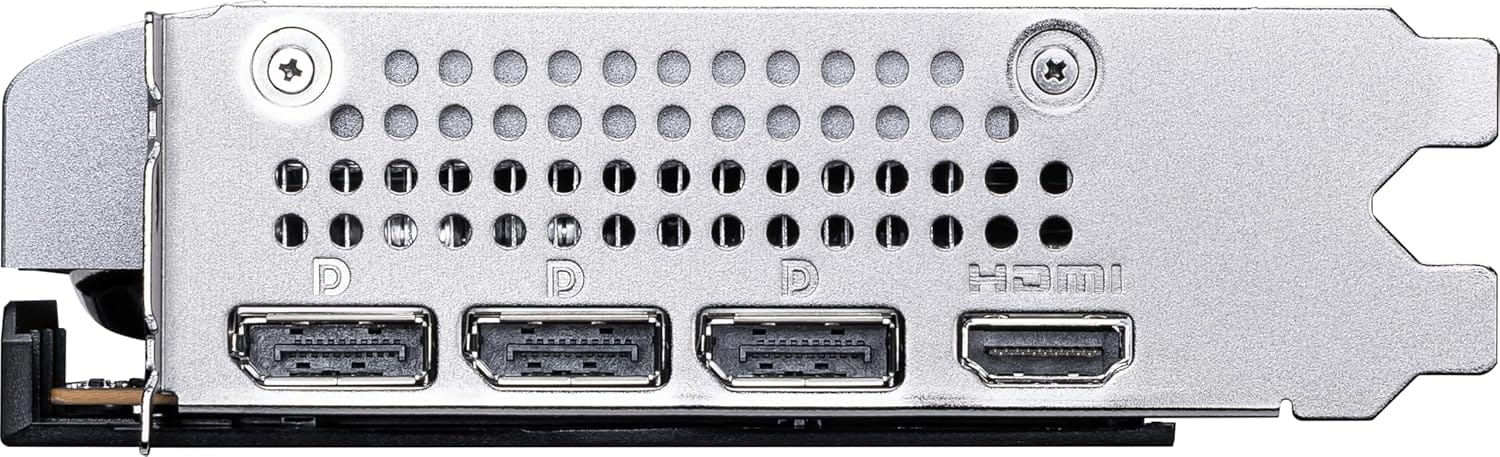

| HDMI |
Yes |
| DisplayPort |
Yes |
| Number of DisplayPort Outputs |
3 |
| Number of HDMI Outputs |
1 |
| Processor & Chipset |
| Chipset Manufacturer |
NVIDIA |
| Chipset Model |
RTX 5060 |
| Chipset Line |
GeForce |
| Chipset Series |
RTX |
| GPU Boost Clock |
2.54 GHz |
| Physical Characteristics |
| Weight (Approximate) |
511 g |
| Form Factor |
Plug-in Card |
| Length |
197 mm |
| Cooler Type |
Fan Cooler |
| Height |
41 mm |
| Width |
120 mm |
| General Information |
| Product Type |
Graphic Card |
| Manufacturer Part Number |
RTX 5060 8G VENTUS 2X OC |
| Manufacturer Website Address |
http://au.msi.com |
| Packaged Quantity |
1 |
| Manufacturer |
MSI |
| Product Model |
G5060-8V2C |
| Product Name |
GeForce RTX 5060 8G VENTUS 2X OC Graphic Card |
| Product Line |
VENTUS 2X |
| Brand Name |
MSI |
| Technical Information |
| API Supported |
DirectX 12 Ultimate |
|
OpenGL 4.6 |
| Features |
Dual-fan Cooler |
|
Ray Tracing |
|
Fuse Protection |
| Number of Monitors Supported |
4 |
| Maximum Digital Display Resolution |
7680 x 4320 |
| CUDA Cores |
3840 |
| AI-powered |
Yes |
